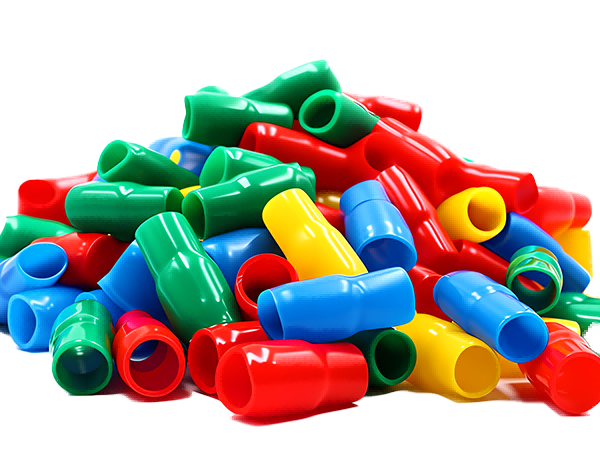

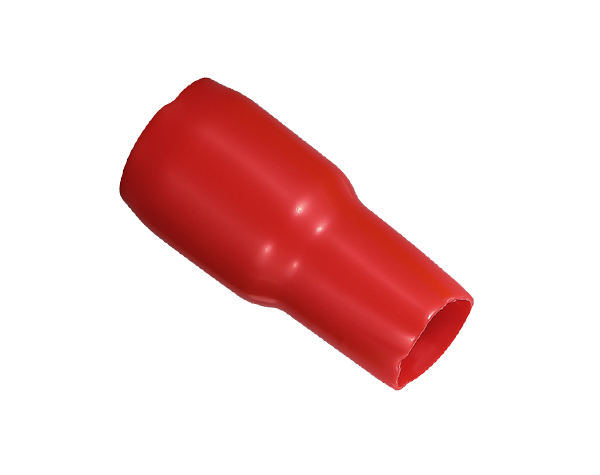

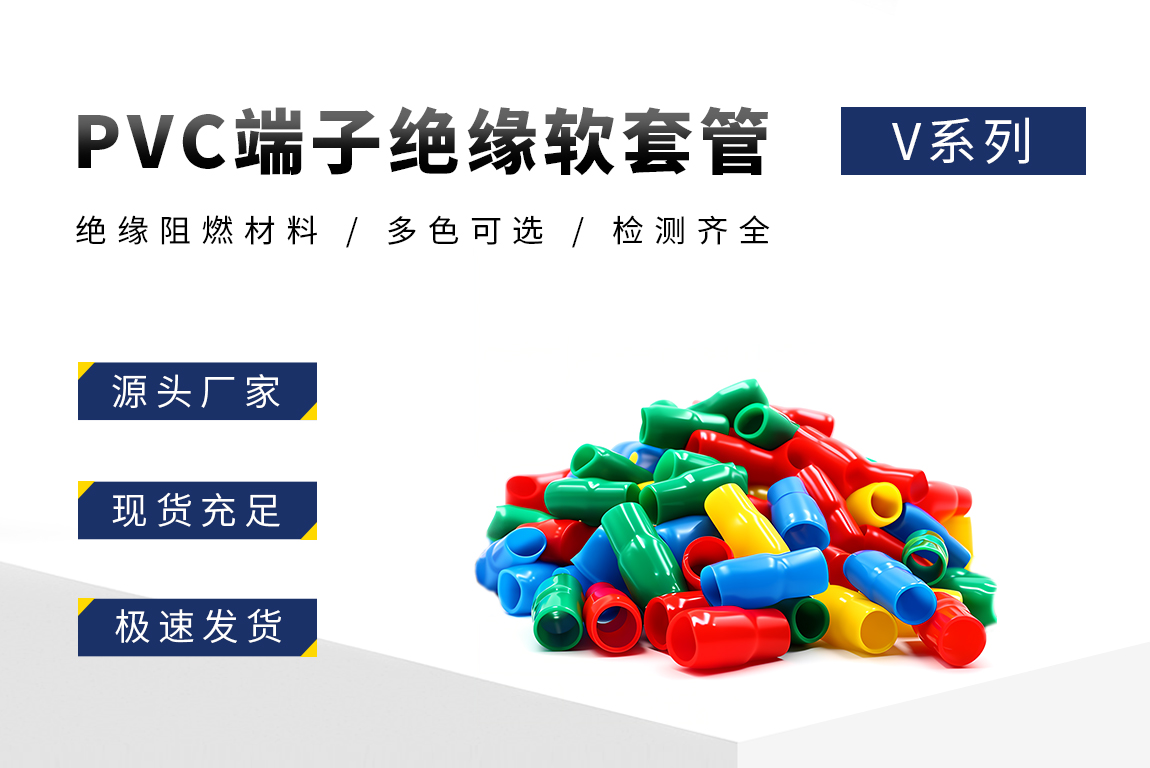

型号：端子绝缘软护套
材质：塑料

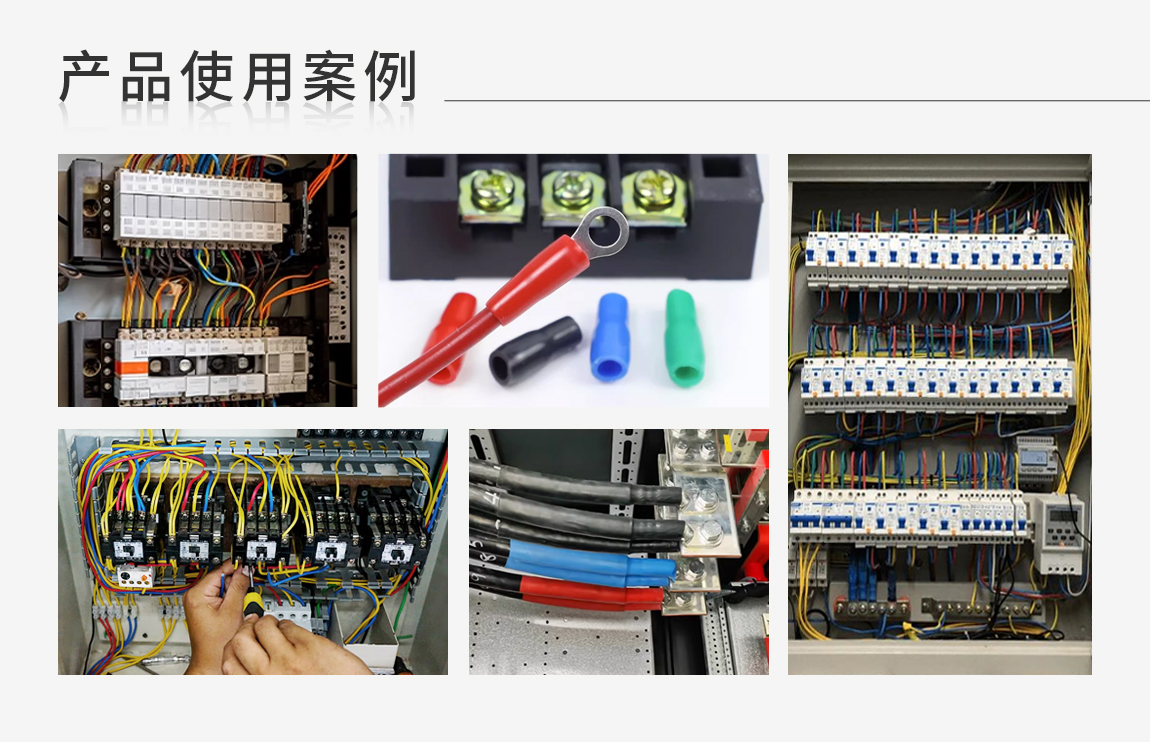

产品用途：冷压端子护套

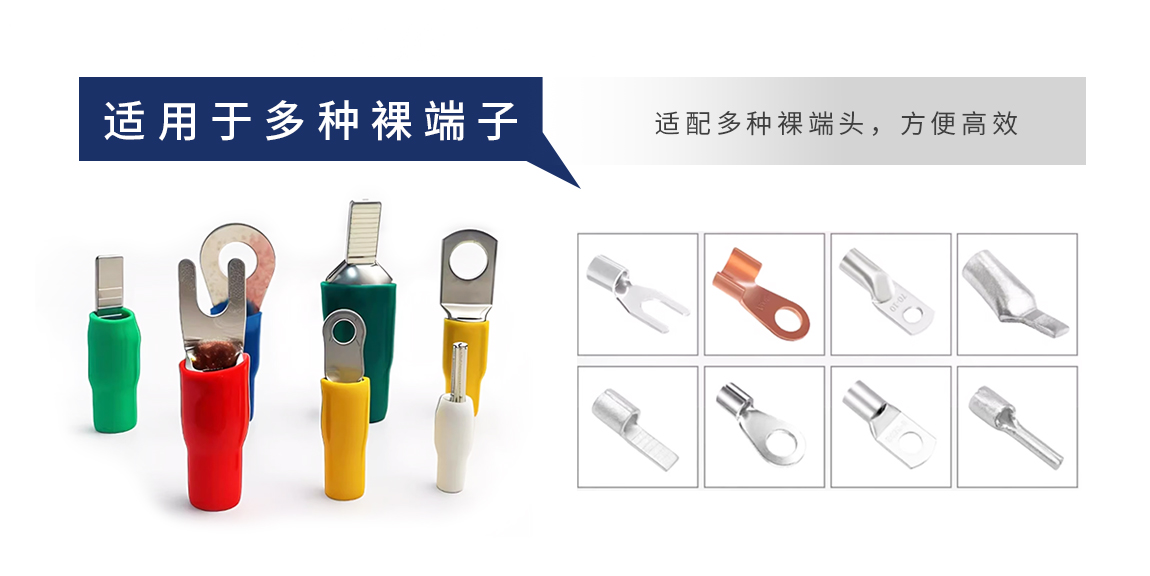

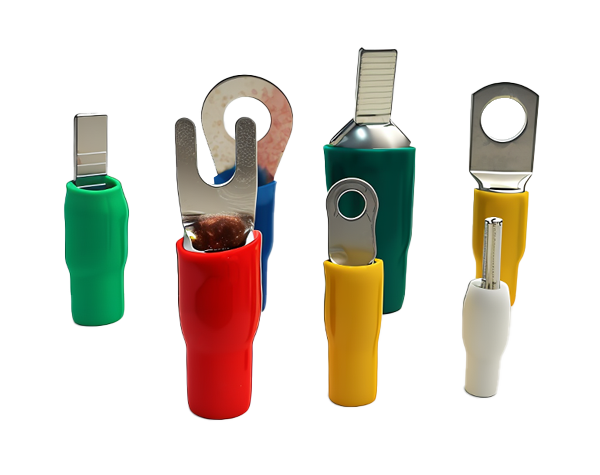

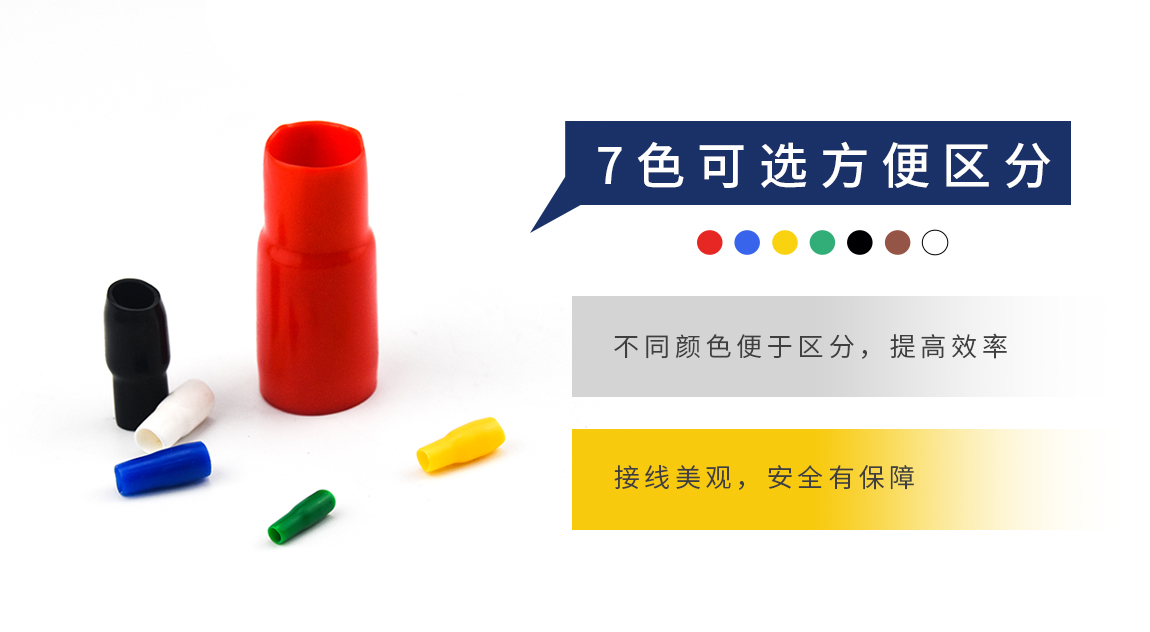

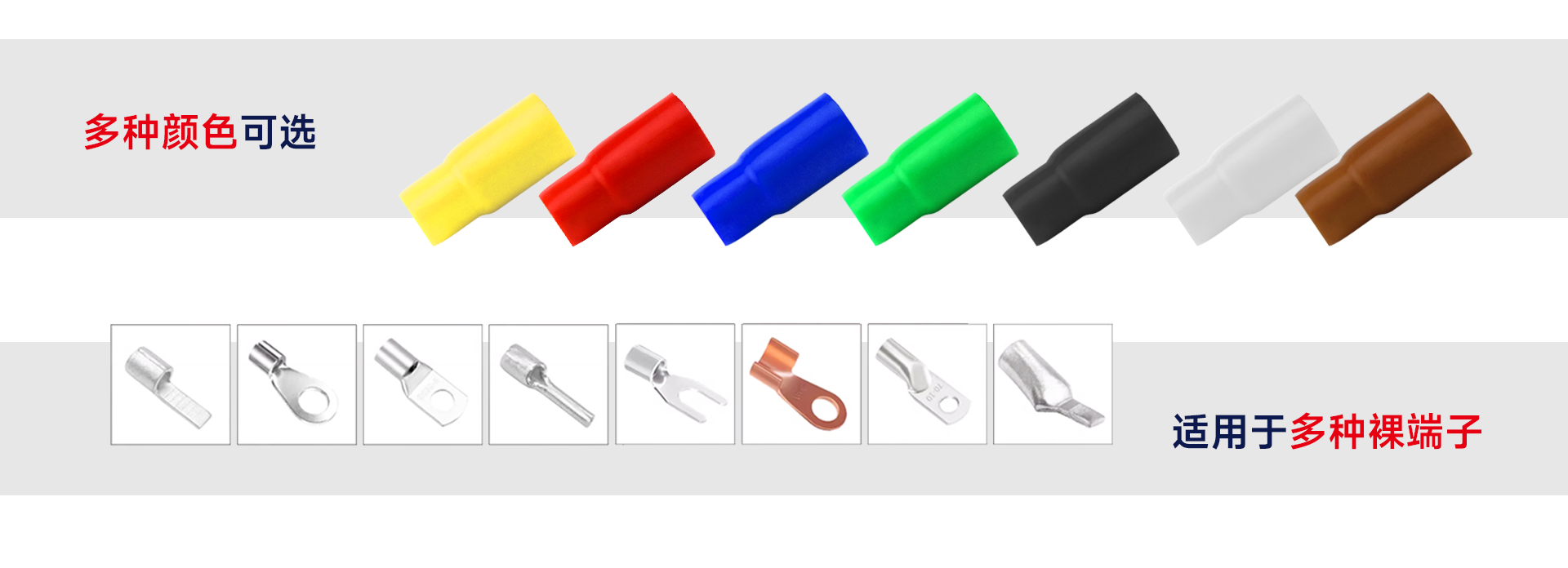

特点：多色可选，适用多种裸端子
选择语言 < 返回菜单
产品材质:紫铜，导电性好
表面处理:哑光/亮光镀锡
产品特性:品质优良,压紧后不断裂松开

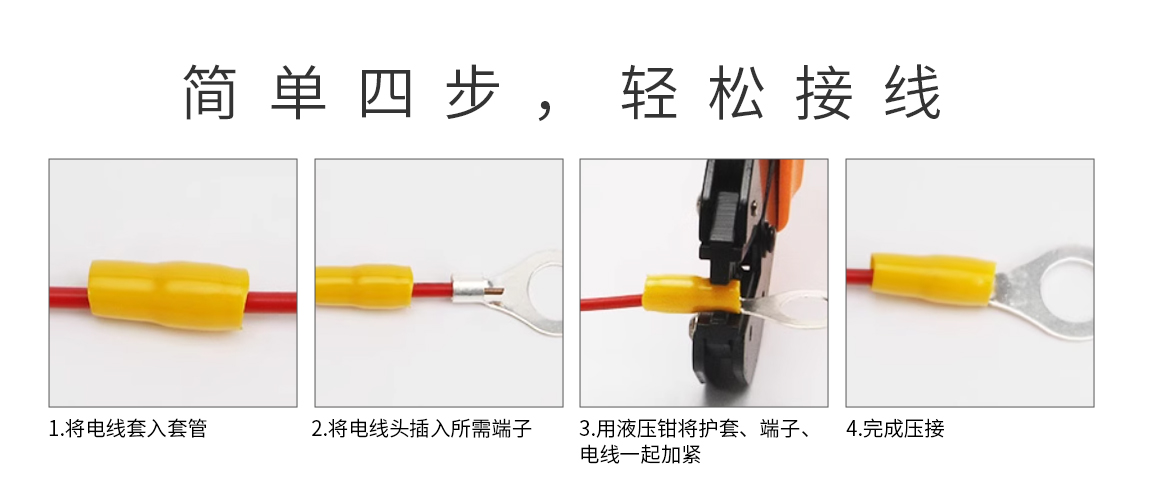

使用方法:将电线剥开外皮,穿入端子后用压线钳压接
产品认证：
欧盟RoHS环保认证/欧洲CE认证

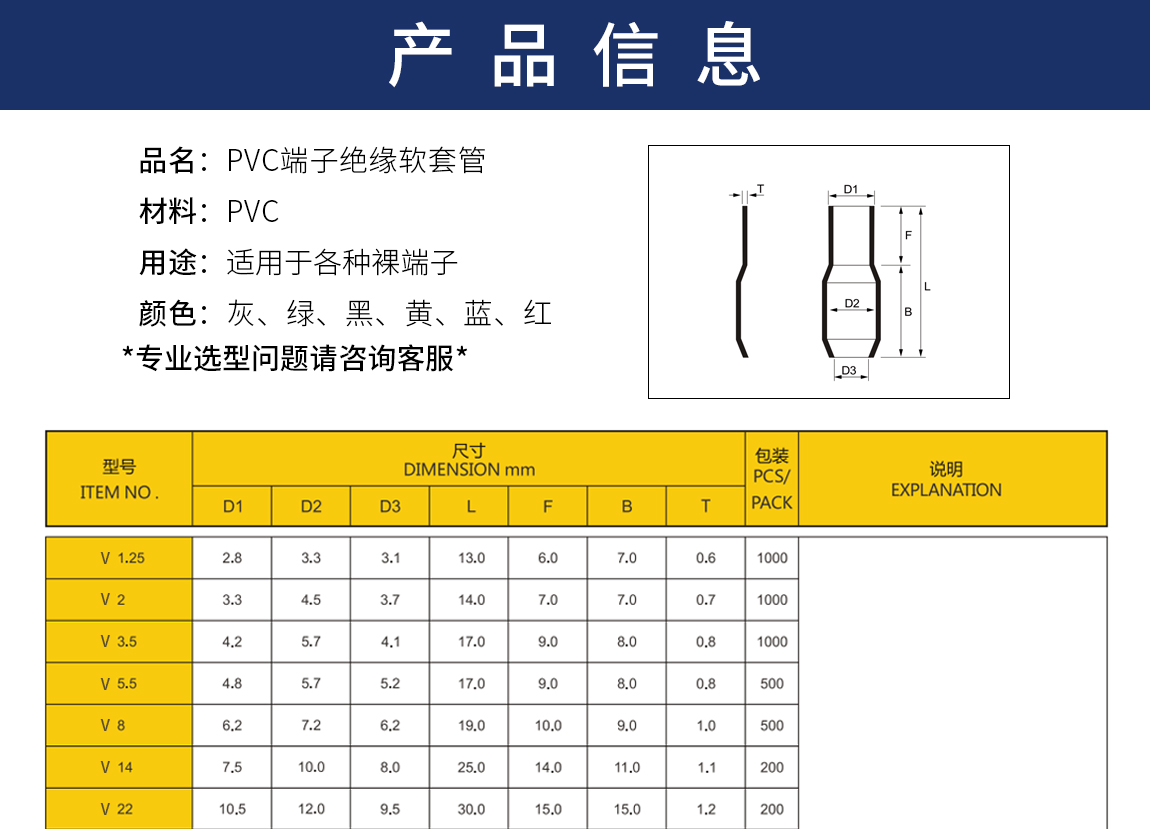

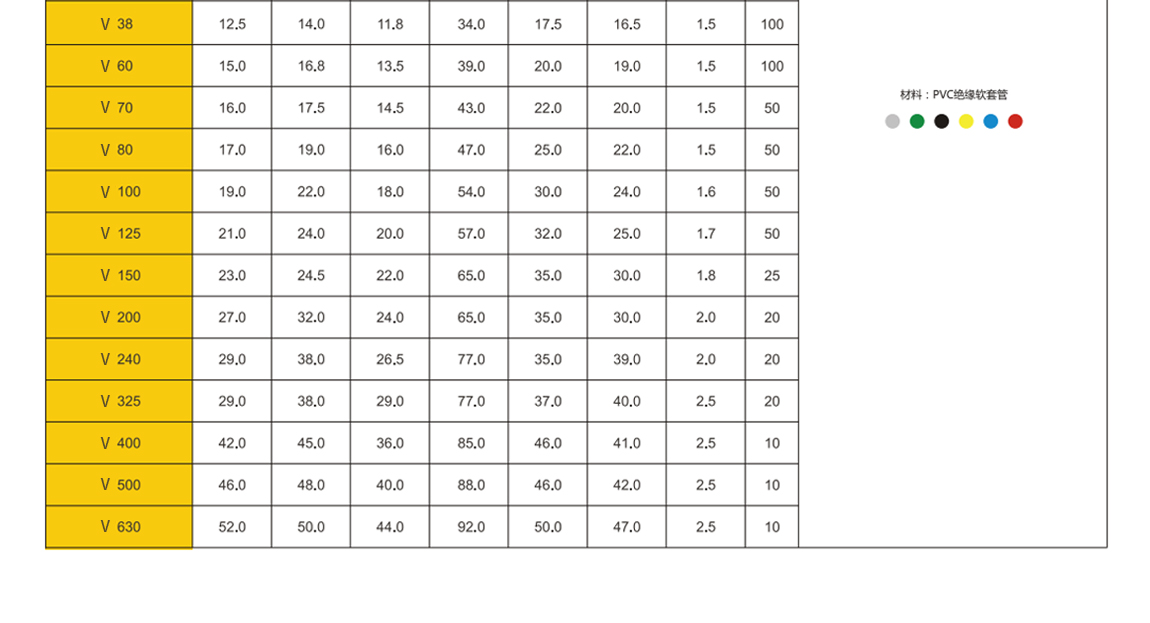

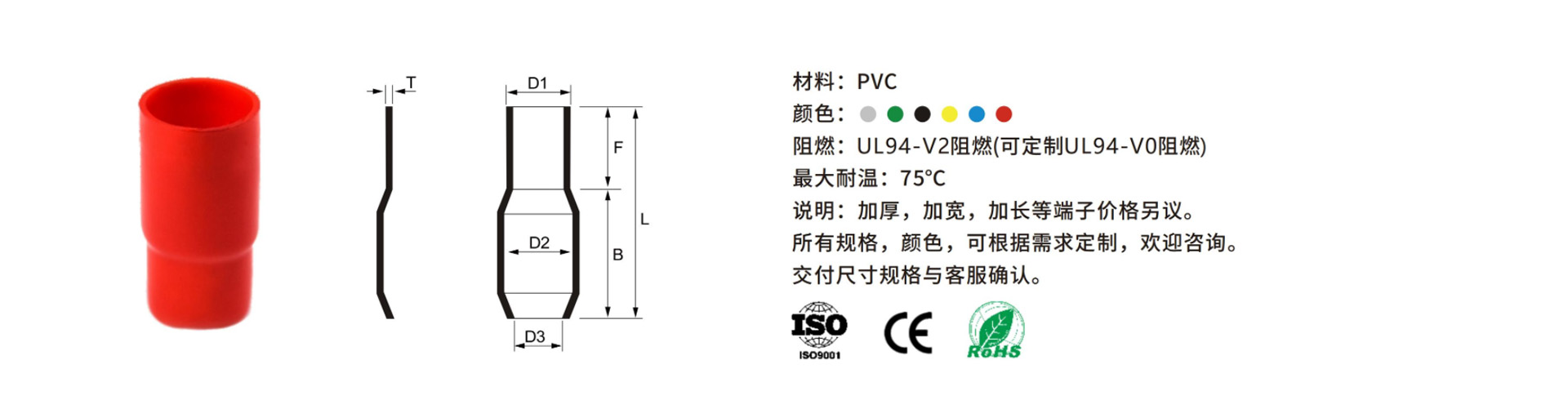

▇产品参数
| 型号 | 尺寸 Dimension（mm） | 包装 | ||||||
| Type | D1 | D2 | D3 | L | F | B | T | PCS/Pack |
| ST1.25 | 2.8 | 3.3 | 3.1 | 13.0 | 6.0 | 7.0 | 0.6 | 1000 |
| ST2 | 3.3 | 4.5 | 3.7 | 14.0 | 7.0 | 7.0 | 0.7 | 1000 |
| ST3.5 | 4.2 | 5.7 | 4.1 | 17.0 | 9.0 | 8.0 | 0.8 | 1000 |
| ST5.5 | 4.8 | 5.7 | 5.2 | 17 | 9.0 | 8.0 | 0.8 | 500 |
| ST8 | 6.2 | 7.2 | 6.2 | 19.0 | 10.0 | 9.0 | 1.0 | 500 |
| ST14 | 7.5 | 10.0 | 8.0 | 25.0 | 14.0 | 11.0 | 1.1 | 200 |
| ST22 | 10.5 | 12.0 | 9.5 | 30.0 | 15.0 | 15.0 | 1.2 | 200 |
| ST38 | 12.5 | 14.0 | 11.8 | 34.0 | 17.5 | 16.5 | 1.5 | 100 |
| ST60 | 15.0 | 16.8 | 13.5 | 39.0 | 20.0 | 19.0 | 1.5 | 100 |
| ST70 | 16.0 | 17.5 | 14.5 | 43.0 | 22.0 | 20.0 | 1.5 | 50 |
| ST80 | 17.0 | 19.0 | 16.0 | 47.0 | 25.0 | 22.0 | 1.5 | 50 |
| ST100 | 19.0 | 22.0 | 18.0 | 54.0 | 30.0 | 24.0 | 1.6 | 50 |
| ST125 | 21.0 | 24.0 | 20.0 | 57.0 | 32.0 | 25.0 | 1.7 | 50 |
| ST150 | 23.0 | 24.5 | 22.0 | 65.0 | 35.0 | 30.0 | 1.8 | 25 |
| ST200 | 27.0 | 32.0 | 24.0 | 65.0 | 35.0 | 30.0 | 2.0 | 20 |
| ST240 | 29.0 | 38.0 | 26.5 | 77.0 | 35.0 | 39.0 | 2.0 | 20 |
| ST325 | 29.0 | 38.0 | 29.0 | 77.0 | 37.0 | 40.0 | 2.5 | 20 |
| ST400 | 42.0 | 45.0 | 36.0 | 85.0 | 46.0 | 41.0 | 2.5 | 10 |
| ST500 | 46.0 | 48.0 | 40.0 | 88.0 | 46.0 | 42.0 | 2.5 | 10 |
| ST630 | 52.0 | 50.0 | 44.0 | 92.0 | 50.0 | 47.0 | 2.5 | 10 |
